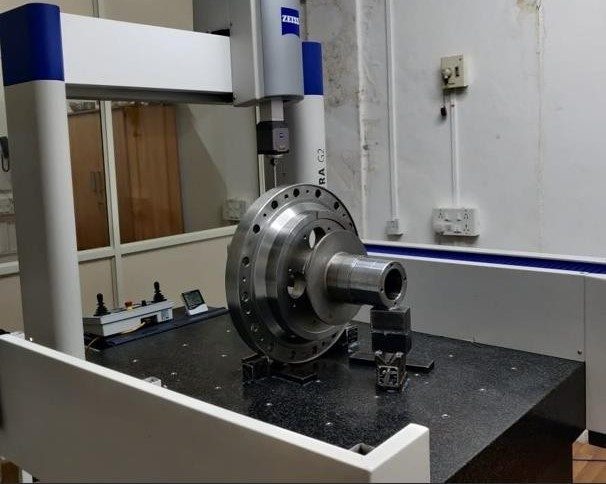

CMM
ZEISS Contour G2 coordinate measuring machine with 1.0 µm accuracy for precise geometric validation.
Complete solution
under one roof.
Alloy development, melting, casting, machining, finishing and inspection — a vertically integrated plant engineered for series production and full traceability.
The process
Nine integrated stages
01
Development & Research
02
Alloy Melting
03
Die Casting
04
Fettling
05
Shot Blasting
06
Testing & Analysis
07
Powder Coating
08

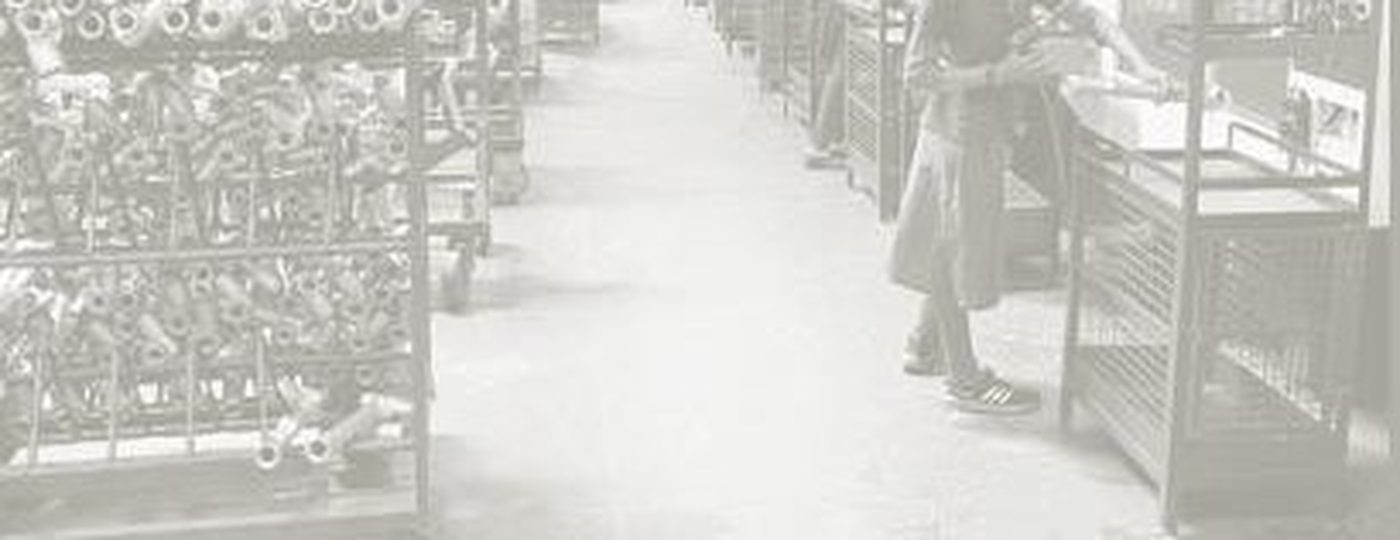

In-house Machining
09
PDI & Dispatch
Infrastructure · HPDC
High Pressure Die Casting
A fleet of 11 machines from 180T to 1000T running advanced two-platen die-casting technology — for thin-wall, high-integrity aluminium (ADC12) castings at series volume.
180T × 1250T × 3350T × 1
420T × 2560T × 1900T × 1
1000T × 2
- In-house die maintenance & die-washing facility
- Auto extractor, jet cooling & squeeze technology
- Auto die-coat mixture · TOYO & TITAN platforms
11
HPDC machines
3,000MT
Installed / yr
+1,200MT
Under installation

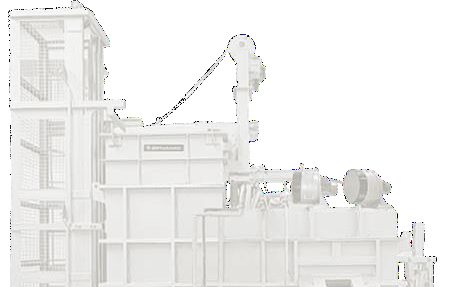

PNG melting furnace · auto degassing
Infrastructure · Melting
Clean PNG melting & degassing
A 1 Ton/hr melting furnace fueled by piped natural gas, with digital monitoring and a fully automatic rotary degassing unit for consistent, low-porosity metal.
- 1 Ton melting chamber · 2 Ton holding capacity
- Automatic flux injection with built-in poka-yoke
- FOSECO degassing · controlled flux, N₂ & air
Quality & testing
Inspected to global standards
From chemical composition to internal soundness and dimensional accuracy — every part is validated with metrology-grade equipment.
Spectrometer
VAS Gold+ optical emission spectrometer verifying the chemical composition of every alloy heat before casting.
Bring us your toughest castings.
Tell us about your part geometry, alloy and annual volumes — we'll assess feasibility end to end.
